SPECIFICATIONS

Brand: PAR sensor

Brand Name: NONE

Cable length: 2m

Description: PAR sensor

High-concerned chemical: none

Internal resistance: <2K

Measuring range: 0-5000 umol*m-2*s-1

Model Number: BGT-PAR1

Mounting Type: Bracket

Origin: Mainland China

Output: Analog or Digital

Output signal: 4~20mA / 0~2.5V / 0~5V / RS485

Place of Origin: Beijing, China

Power supply: DC5V or DC12V or DC24V

Relative humidity: 0~100%

Response time: about 1s(99%)

Spectral range: 400~700nm

Theory: Optical

Usage: Photosynthetic Active Radiation Sensor

operate Temperature: -40°to 65°

Welcome, my friend! If you need other models of this product, feel free to let me know and I'll send you the link. For quick assistance, The shipping fees on AliExpress may be inaccurate. Please message me before placing an order to get the correct fees. Let me know if you need anything! please contact me via WAp: +86 19173199094 or aaa12345670004@163.com

Products Description

China factory wholesale digital output solar light quantum sensor/ PAR sensor

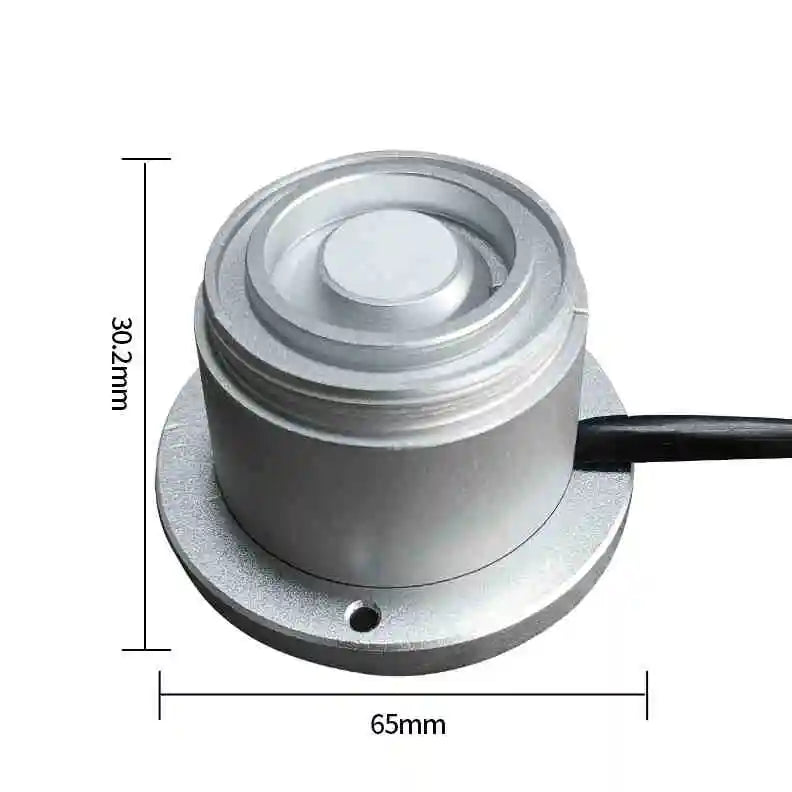

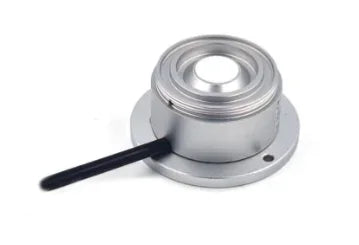

Photosynthetic Active Radiation (par) Sensor adopts optical material window and aluminum alloy shell structure. With the features of strong structure, good sealing, long service life, high measurement accuracy, good stability, long transmission distance,strong ability to resist external interference, which is in line with the (WMO) World Meteorological Organization specifications (CIMO Guide). It can be widely used in environment, agriculture, aquaculture, greenhouse, laboratory and other occasions that need photosynthetic active radiation measurement.

About PAR
The five photosynthetic reactions of plants, namely photosynthesis, pigment synthesis, photoperiod, phototaxis and photopoiesis, are all concentrated in the wavelength range of 400 ~ 700nm. Therefore, the radiation in the band of 400~700nm is usually referred to as photosynthetic active radiation, represented by the symbol Qp, and the unit is W/m2, or measured by the photoquantum flux density, and the unit is umol/m2·s. Photosynthetic active radiation is the energy source of plant life activities, organic material synthesis and yield formation.

Data Sheet

Item No.			BGT-PAR1
Spectral range			400～700nm
Measuring range			0-4000 umol*m-2*s-1
Power Supply			DC3.3V/DC5V / DC9-30V
Output signal			RS485 / 4-20mA / 0-2.5V/0-5V
Cable Length			Standard 2M
Response time			<5s（99%）
Work environment			Temperature--40°to 65° Humidity:≤100%RH

Application

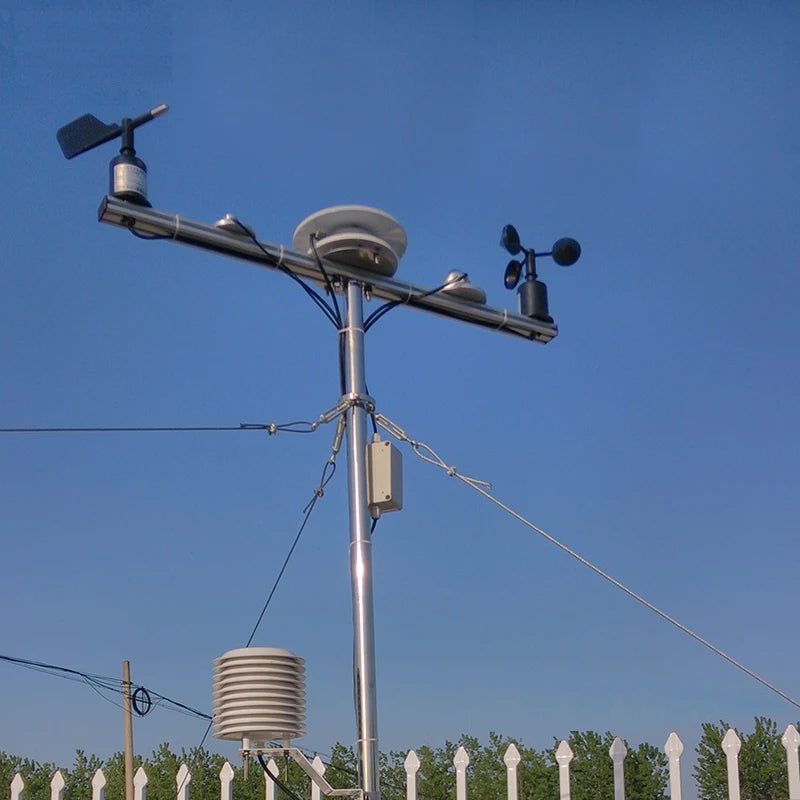

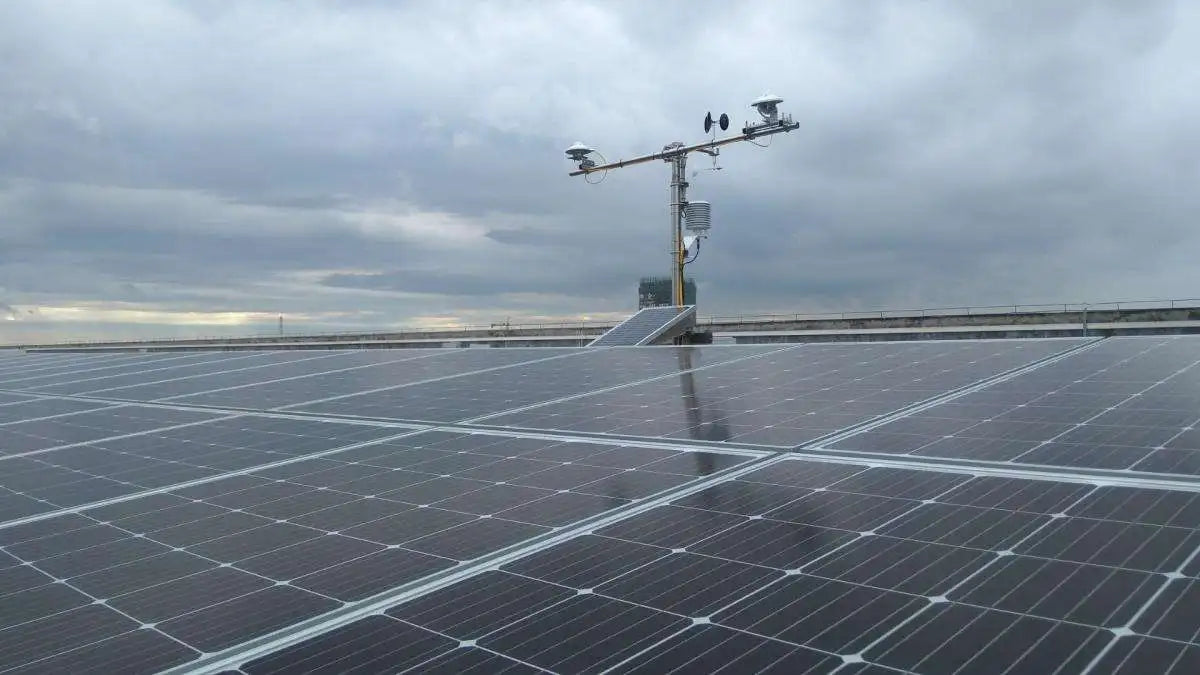

weather Station.

Order process

--In order to send you the specific quotation, please feel free to tell us the following information:

1. The power supply you required -- We have DC3.3V/DC5V / DC9-30V for your choices.

2. The output method you required -- We have 4-20mA/0-5V/0-2.5V/RS485/RS232 for your choices.
3. The cable length you required -- The standard is 2m, if you want longer, please let me know.

4. The quantity you want to order--Sample is also welcome.

5. Price--EXW price or FOB price or DAP price.
6. Your complete company name,address (including post code), email address, contact person, phone number,etc.
