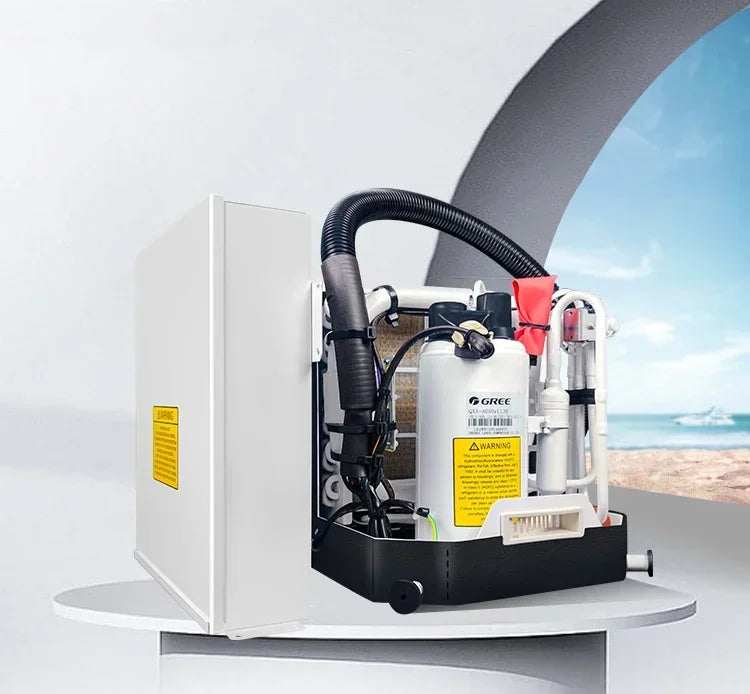

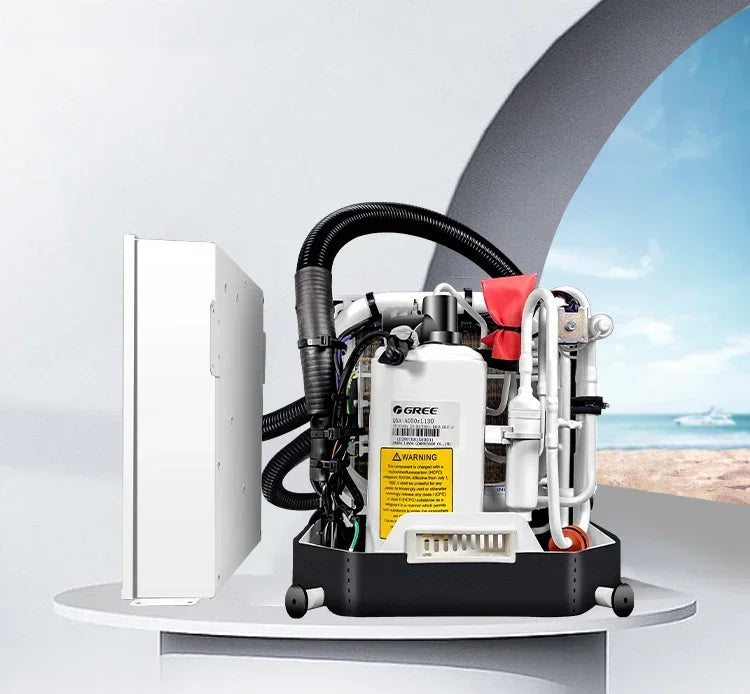

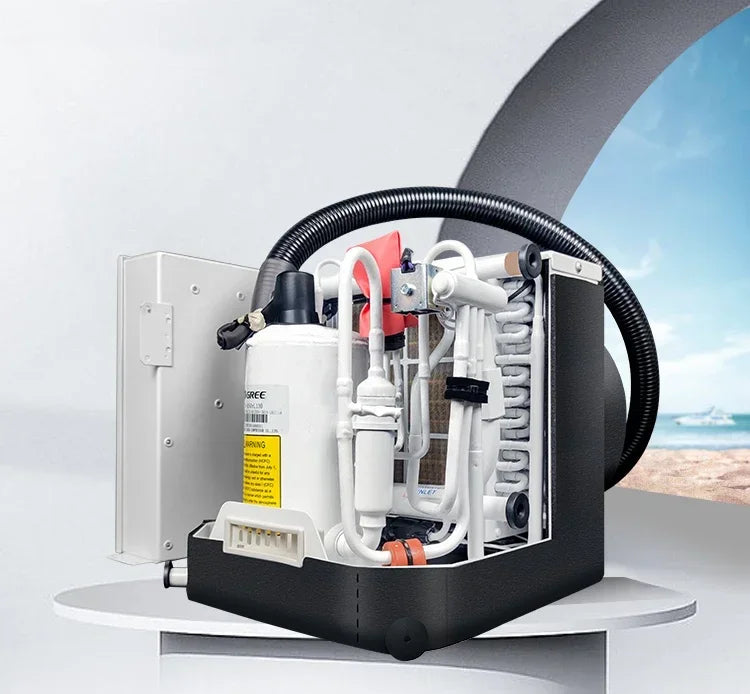

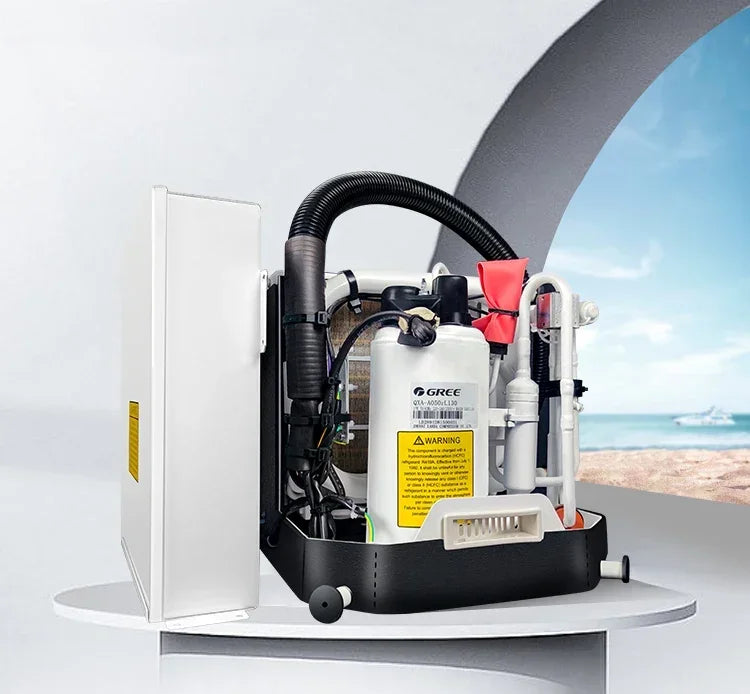

2024 Self-contained Boat Air Conditioning 24000Btu Water Cooled Gree Marine Air Conditioner System for Boat Yacht
Application: Marine, Boat, Yachts & Offshore
Brand Name: NONE
Certification: CE
Cooling capacity: 5000-36000BTU
Cooling mode: Sea Water cooled
Feature: Light Weight
Feature2: Rotary Refrigerant Compressor
Function: Cooling Heating
High-concerned chemical: none
Is it Powered: Non-powered
Key Selling Points: Sustainable
Local Service Location: None
Mounting: Floor Standing
Mounting Type: Floor Standing
Origin: Mainland China
compressor brand: Gree
core components: Motor, Pump
dimension(l*w*h): 589*600*400mm
fan motors type: AC
key selling points: Eco-Friendly
machinery test report: Provided
place of origin: Guangdong, China
type: Chiller
video outgoing-inspection: Provided
warranty: 1 Year
weight (kg): 68
|

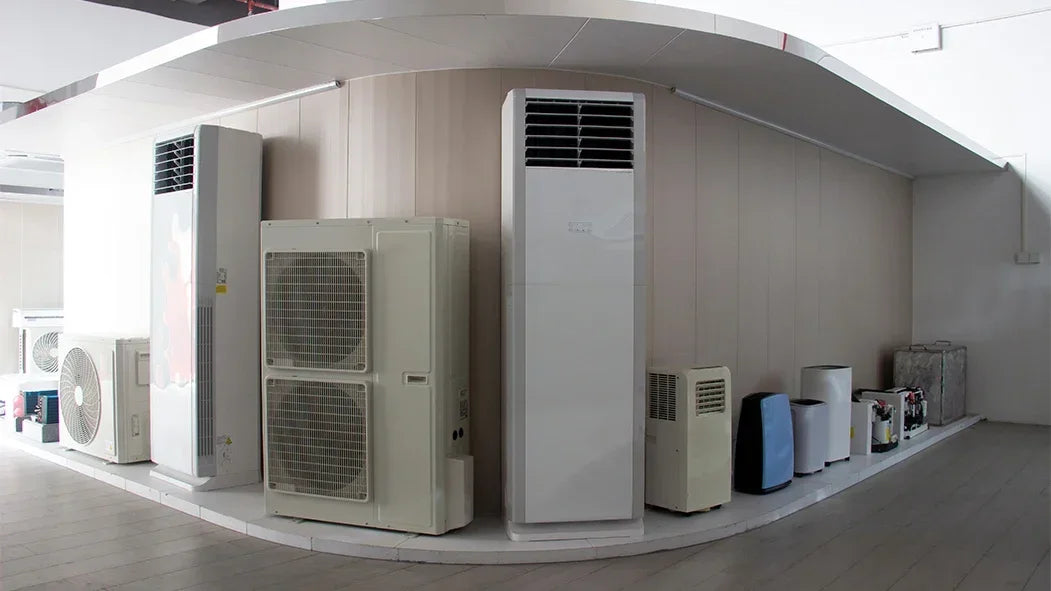

3D VR Showroom
|
||||||||

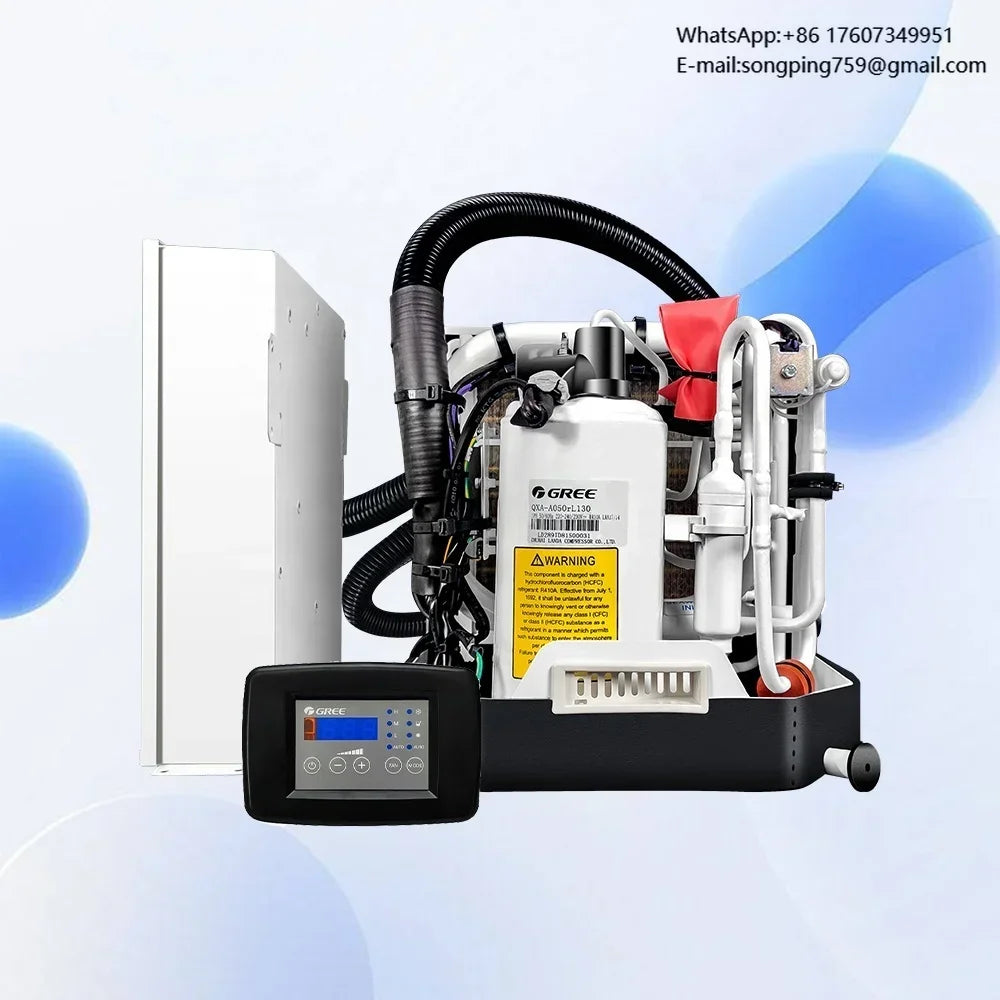

Marine Air Conditioner
1.High effeciency rotary compressors
2. Cooling/Heating/Dehumidifying

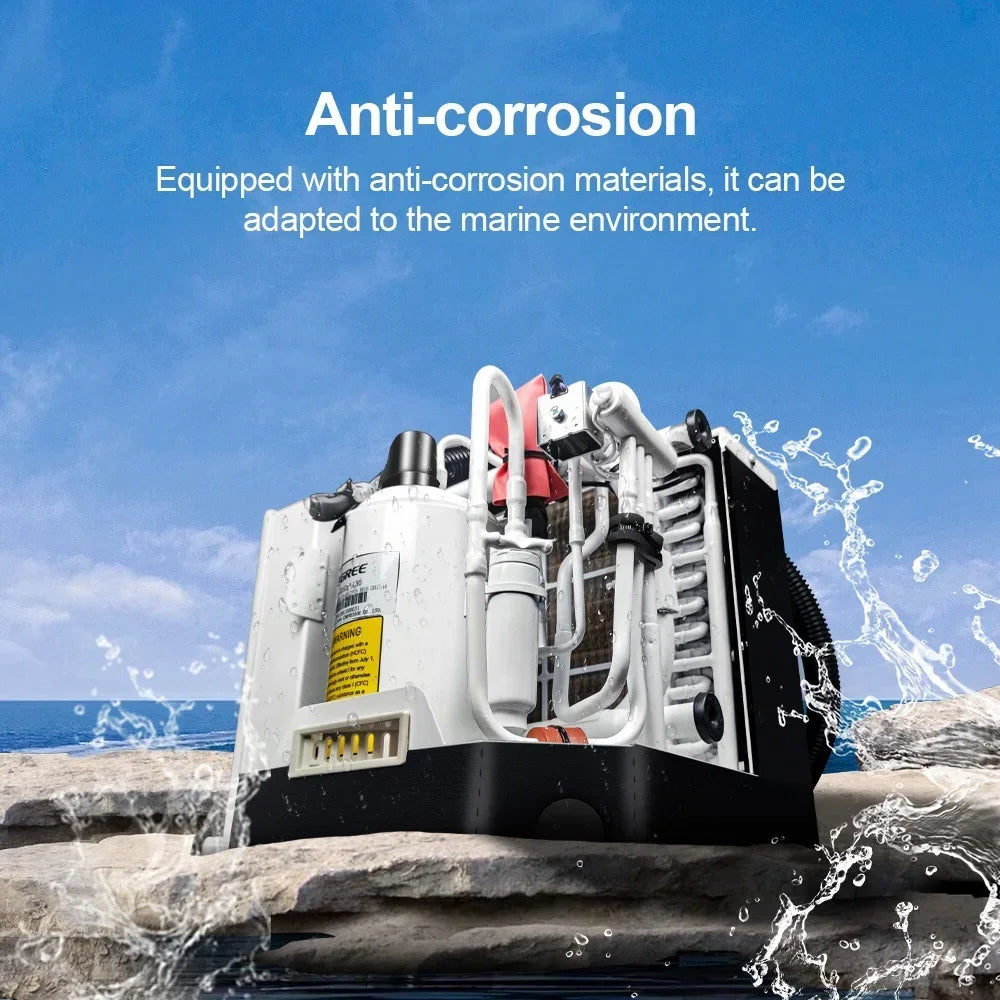

3.Strong Anti-Corrosion performance
4.Compact design & Lightweight

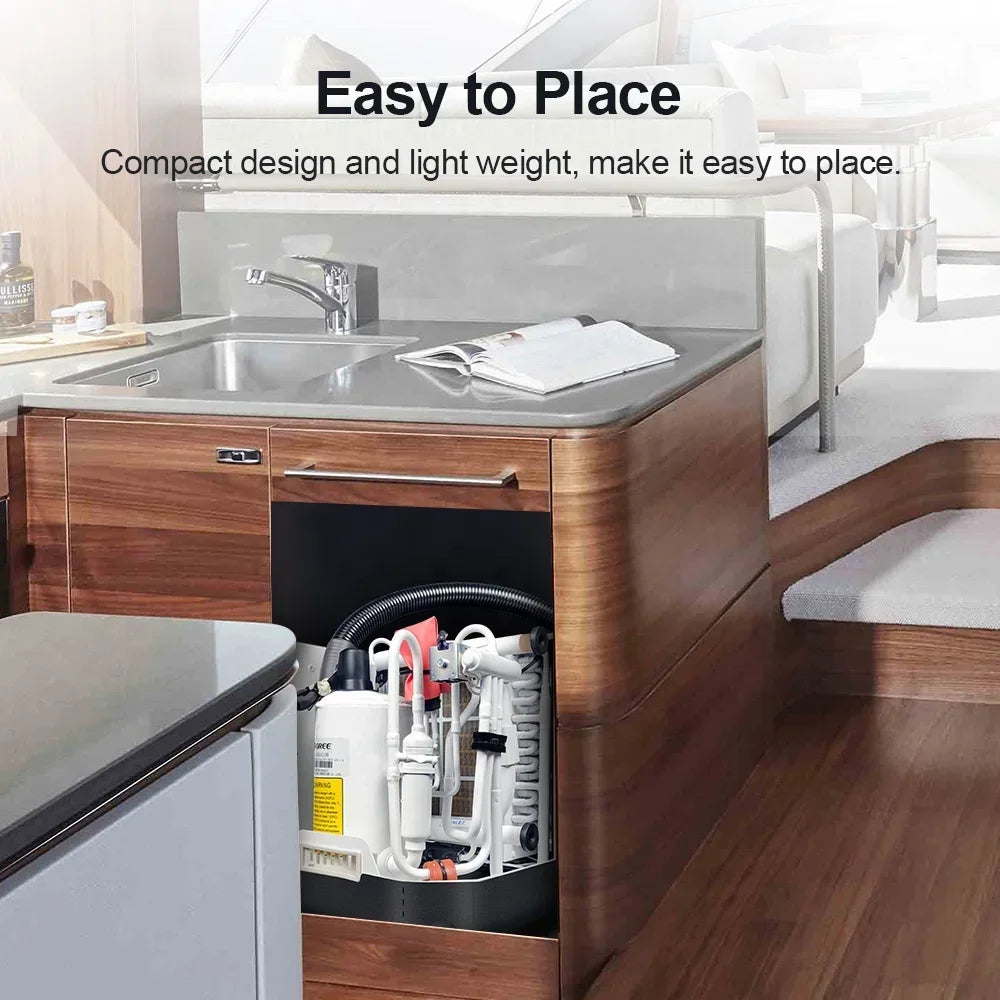

5.Easy to install & place
6.Low maintenance costs
7. Long service life
8. R410a refrigerant

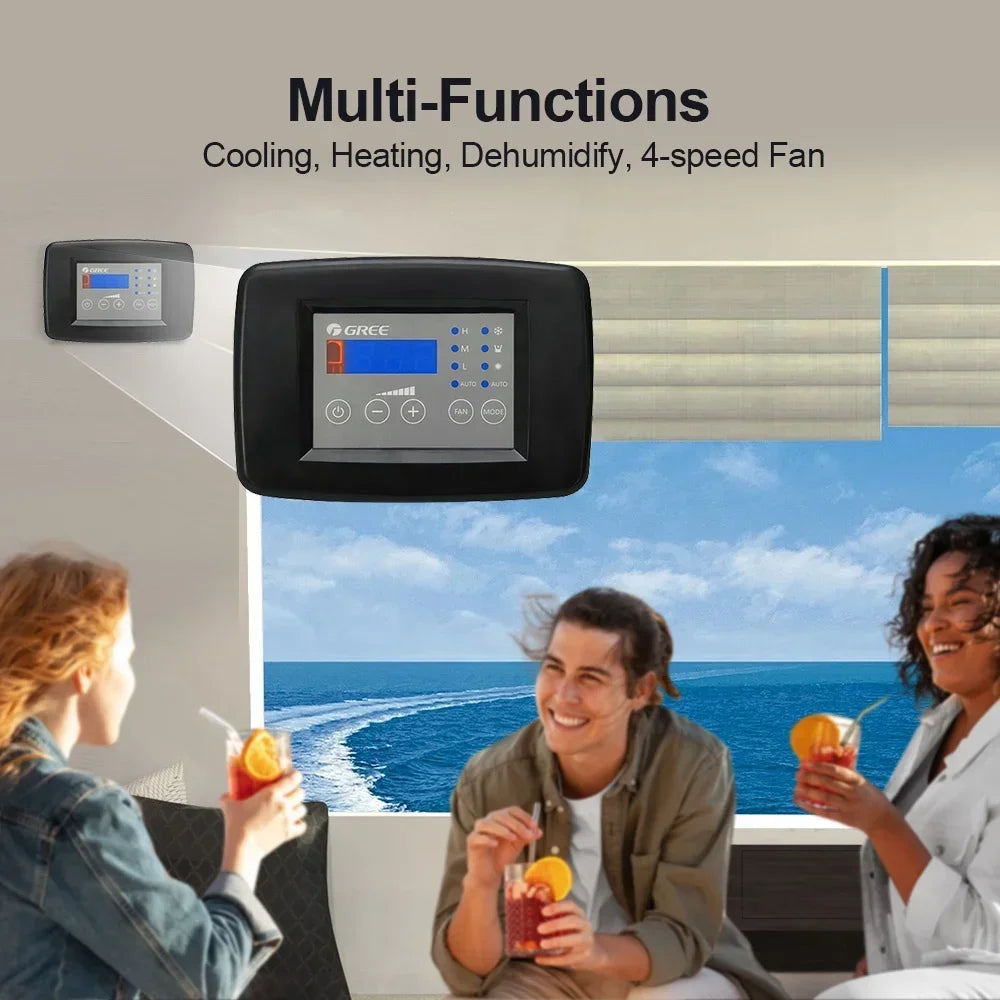

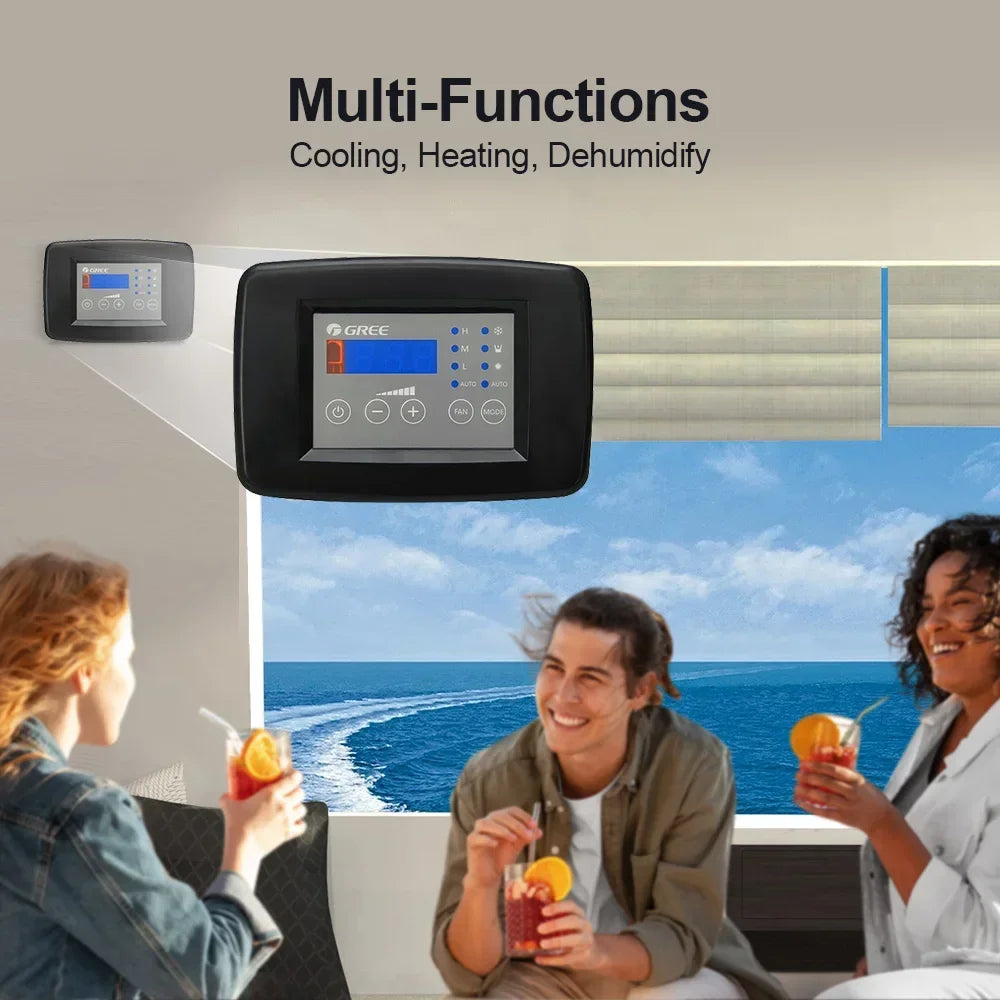

The Controller Panel
usage introduction

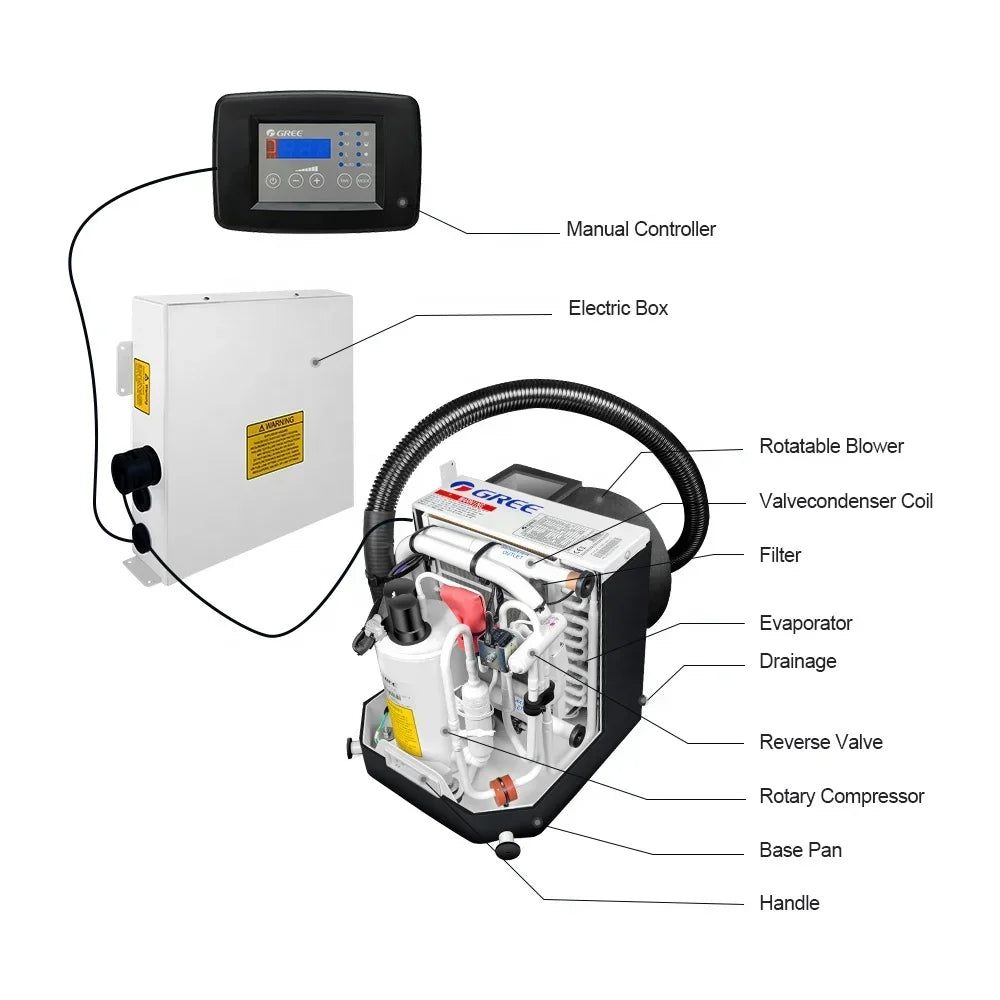

Description of product
use effect
|
Model
|
PMD9NaC-T
|
PMD12NaC-T
|
PMD16NaC-T
|
PMD24NaC-T
|
|||||
|
Capacity-Cooling(Btu/h)
|
9000
|
12000
|
16000
|
24000
|
|||||
|
Capacity-Heating(Btu/h)
|
9500
|
13000
|
16500
|
25200
|
|||||
|
Power supply(V,Hz,Ph)
|
220V 50/60Hz 1Ph
|
|
|
|
|||||
|
Refrigerant
|
R410a
|
|
|
|
|||||
|
Power input
(KW)
|
Cooling
|
0.92
|
0.95
|
1.25
|
1.8
|
||||
|
Heating
|
0.86
|
1.10
|
1.25
|
2.1
|
|||||
|
Amp Draw
(A)
|
Cooling
|
4.0
|
4.3
|
5.6
|
11.9
|
||||
|
Heating
|
3.9
|
4.6
|
5.6
|
14
|
|||||
|
Air flow
(m3/h)
|
High
|
470
|
580
|
750
|
1200
|
||||
|
Middle
|
350
|
460
|
600
|
800
|
|||||
|
Low
|
280
|
380
|
450
|
600
|
|||||
|

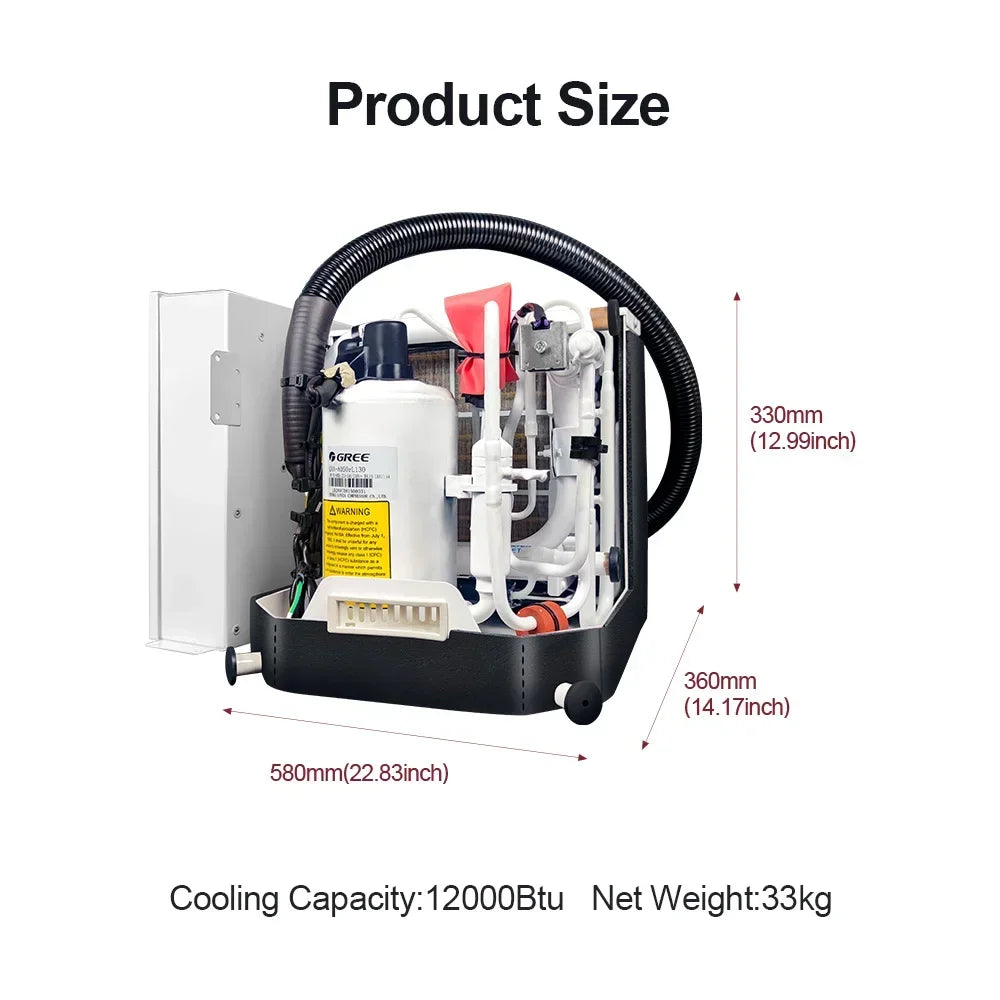

Dimension (mm)
|
Width
|
380
|
580
|
650
|
529
|
||||
|
Depth
|
413
|
360
|
370
|
595
|
|||||
|
Height
|
330
|
330
|
330
|
386
|
|||||
|
Net weight(kg)
|
29
|
33
|
38
|
60
|
|||||
